Brand Name : Other Brands
Model Number : IOC16T 200-565-000-013
Certification : CO
Place of Origin : China
MOQ : 1EA
Price : 900USD
Payment Terms : T/T
Supply Ability : 10EA
Delivery Time : 5-8 working days
Packaging Details : Original
Product Model : IOC16T
Part Number : 200-565-000-013
Packing : Original
Warranty : 1 Year
Lead time : In stock

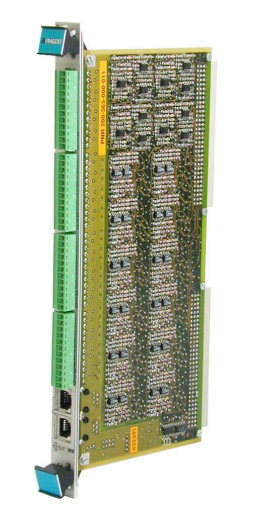

IOC16T 200-565-000-013 Input / Output Card In Stock ESD System Card
Product Details:
Brand Name | Others |
Model | IOC16T |
Ordering information | 200-565-000-013 |
Condition | New |
Gross Weight/Shipping Weight | 2.2 lbs / 35.2 oz / 1kg |
Packing Size | 6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm) |
Country of Origin/Original Country | China |
Lead Time | In Stock |
Shipping Port | Xiamen |
Payment | T/T |
Sales Price | Inquiry |
Color | Depends on material |
Warranty | 12 months |
Lead time | 5-8 work days |
Courier partners | DHL, UPS, TNT, FedEx and EMS |
Description:
The IOC 16T Input / Output Card acts as a signal interface for the VM 600 series CMC 16 (Condition Monitoring Card). It is installed in the rear of the ABE 04X rack and connects directly to the rack backplane via two connectors.
Each IOC 16T is associated with a specific CMC 16 and is mounted directly behind it in the rack. The IOC 16T contains a terminal strip to connect the transmission cables coming from transducers and conditioners. However, if these signals are already available via the VM 600 backplane ‘Raw Bus’ and ‘Tacho Bus’ lines, then these can be selected directly without any need for additional wiring.
The card protects all inputs and outputs against electromagnetic interference (EMI) and signal surges and also meets EMC (electromagnetic compatibility)standards.
Tacho inputs, signals from accelerometers, velocimeters and proximity probes, or any dynamic or quasi-static signals are conditioned by dedicated circuitry which perform tasks such as pulse shaping, level adjustment, AC/DC selection and cold junction compensation. Micro-switches are provided to facilitate selection of conditioner and access method (i.e. screw terminals or backplane). The IOC 16T also provides isolation from the plant and ensures feedthrough of inputs to the CMC 16.
Two methods of communication are supported; VMEbus connection to a CPU M module in slot 0 of the VM 600 rack and subsequent Ethernet link, or direct isolated multi-drop RS-485 serial connection via RJ connectors provided on the IOC 16T.
Features
![]() |
IOC16T 200-565-000-013 Input / Output Card In Stock ESD System Card Images |
