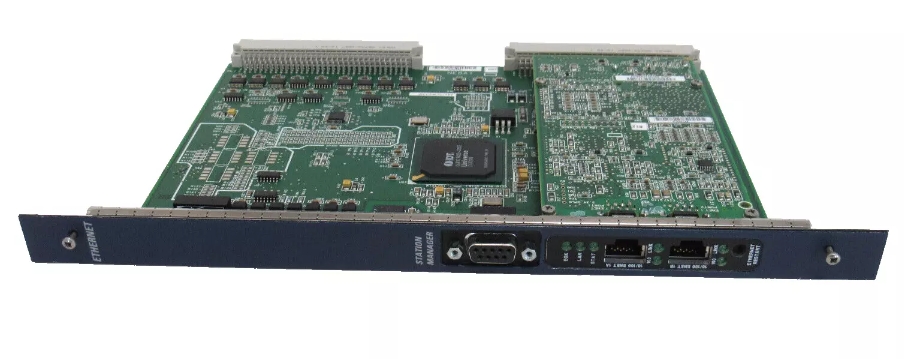

IC698ETM001 GE Ethernet Module With Firmware Version 2.0 PACSystems RX7i Interface Module
Product Details:
| Brand Name | GE |
| Model | IC698ETM001 |
| Catalog | IC698 |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $800 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:
| Subject | Description |
| RX7i Does Not Support SRTP Client (“Channels”) | The Ethernet Interface does not support the SRTP Client operation (“SRTP Channels”) that was provided in the Series 90-70 Ethernet Interface (IC697CMM742). |
| SRTP and EGD Performance Differs from Series 90-70 | SRTP and EGD performance in the RX7i differs slightly from the Series 90-70. Each RX7i Ethernet Interface supports a greater number of SRTP connections and EGD exchanges. Please also note that the RX7i currently has several SRTP and EGD operational restrictions when compared to the Series 90-70. When migrating Series 90-70 Ethernet applications to the RX7i, please carefully read the "Ethernet Operational Notes”section on page 7. |
| Series 90-70 LAN Interface Modules (IC697CMM741 and IC697CMM742) not Supported by RX7i | Please note that the Series 90-70 LAN Interface Modules (IC697CMM741 and IC697CMM742) are not supported by the RX7i and should not be placed in an RX7i rack. The RX7i CPU contains an embedded Ethernet Interface. If additional Ethernet Interfaces are required, the RX7i Ethernet Module (IC698ETM001) should be used. |
Description:
The IC698ETM001 feature Two Ethernet ports, bot capable of transmitting data in 10/100 Mbps communication speed with auto-sensing capability.
These ports are designed to be physically connected with the use of RJ45 connectors and minimum of CAT5 cable. These ports support daisy chaining, allowing formation of linear, star and ring topologies and supports unique or redundant IP addressing.
Additionally, it has One serial communication port that is a 9-pin sub-D connector, supporting transmission speeds of 1200 - 115200 bps. This port is basically a Station Manager port that is used to perform configuration to the module.
The Ethernet Interface does not terminate all open SRTP connections before changing its IP address. Once the local IP address has changed, any existing open TCP connections are unable to normally terminate.
This can leave SRTP connections open until their underlying TCP connections time out. If quicker recovery of the SRTP connection is needed, modify the “wkal_idle”.
Advanced User Parameter to reduce the TCP keep alive timer down to the desired maximum time for holding open the broken connection. Refer to TCP/IP Ethernet Communications for the PACSystems RX7i, GFK-2224, for details.
Datasheet Link:GE IC698ETM001.pdf
